Sovol Eddy Current Scanning Module Kit for Sovol SV08 3D Printer
Vare #:
185110907
DKK 431
Price Details
Excluding Shipping & Custom charges ( Shipping and custom charges will be calculated on checkout )
*All items will import from USA
0 ratings
Skriv en anmeldelse
På lager
Importeret fra USA butik
Bestil nu og få den omkring Tirsdag, Juni 30
Sikker transaktion
Ubuy arbejder hårdt for at beskytte din sikkerhed og dit privatliv. Vores avancerede betalingssikkerhedssystem sikrer fortrolighed ved at kryptere dine oplysninger under transmission ved hjælp af AES (Advanced Encryption Standards) og SSL (Secure Socket Layer) protokoller. Dine betalingsoplysninger er 100% sikre, da vi ikke deler dine betalingsoplysninger med tredjepartssælgere.
Vores bedste logistikpartnere
Experience groundbreaking high speed and unmatched accuracy with the Sovol Eddy Current Scanning Module Kit for your 3D printing needs.
Fast
Shipping
Free
Return*
Secure Packaging
100% Original Products
PCI DSS Compliance
ISO 27001 Certified
Note: Step Down Voltage Transformer required for using electronics products of USA store (110-120). Recommended power converters Køb nu.
Hvad der skiller sig ud
Eddy Current Technology
Utilizes advanced eddy current scanning for precise calibration and adjustments, improving print quality and consistency over traditional methods.
Easy Installation
Designed specifically for the Sovol SV08, this module ensures a hassle-free setup, allowing users to enhance their 3D printing experience quickly.
Enhanced Accuracy
Delivers exceptional measurement accuracy, addressing common printing issues, and providing users with professional-grade results without needing extensive technical skills.
Produktdetaljer
- This Module kit omly fits for Sovol SV08. Only fits for Klipper, not for Marlin. The eddy current scanning kit must be used with a metal platform plate. It cannot be used on non-metallic platform plates such as carbon silicon crystal glass plates, fiberglass platform plates, etc. You need to flash the firmware before use this kit. The nozzle cover in the kit must be used, otherwise the kit cannot be installed

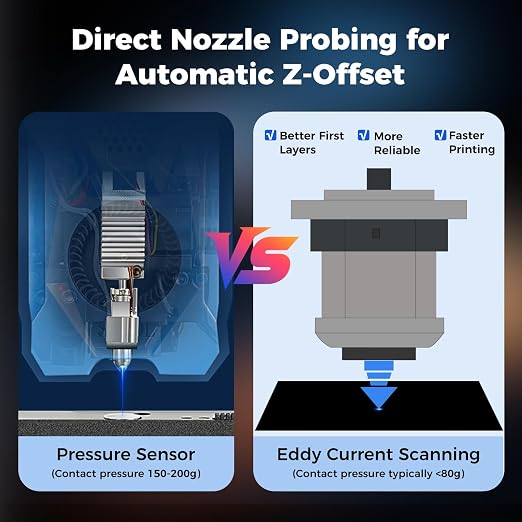

- Using the same automatic leveling system as SOVOL's new model, SOVOL ZERO, the new system combines eddy current scanning and pressure sensors with high accuracy. The eddy current automatic leveling sensor can complete the hot bed leveling at a very high speed, which is faster than traditional sensors. But its groundbreaking high speed does not affect the leveling accuracy. After the first calibration is completed, there is no need to manually adjust the Z offset
- The working principle of the eddy current automatic leveling sensor is different from that of most leveling sensors on the market (such as BL touch, CR-touch and 3D-touch). You need to compile the firmware first. Please refer to the SOVOL Wiki for instructions and more information
- The eddy current automatic leveling sensor provides advanced temperature compensation and Z-axis homing functions, which largely avoids the negative impact of temperature fluctuations on your leveling accuracy, ensuring consistent and precise leveling at all times
- The eddy current automatic leveling sensor must be operated on a hot bed with evenly distributed magnets (such as spring steel plates) and PEI plates with magnetic stickers. Do not use it on a hot bed with uneven magnets. (The original Sovol SV08 machine installation has no effect).
Product Technical Details
| Package Dimensions | 7.56 x 5.39 x 3.62 inches |
| Item Weight | 9.9 ounces |
| Manufacturer | Sovol |
What's in the box
SV08 Eddy Current Scanning Module Kit*1
Hvem bør købe?
-
Intermediate Users
Ideal for those with 3D printing experience seeking to enhance quality and efficiency in their projects.
-
Professionals
Great for experts needing precise diagnostic tools to streamline their workflows and improve print accuracy.
-
Tech Enthusiasts
Perfect for hobbyists who enjoy experimenting with advanced features to optimize their 3D printing setups.
-
Beginners
Not suitable for novices who may find installation and troubleshooting complex without prior experience in 3D printing.
-
Budget-Conscious
Could be too expensive for casual users or those just exploring 3D printing without significant investment.
-
Non-Tech Users
Not ideal for individuals uncomfortable with technology or hesitant to engage with intricate hardware modifications.
PRODUKTBESKRIVELSE
Har du nogen forespørgsel? Chat med os
Kundespørgsmal & svar
-
spørgsmål:
Is this kit compatible with printers other than the Sovol SV08?
svar: No, this kit is specifically designed for the Sovol SV08 printer only. -
spørgsmål:
What type of platform is required for this sensor to work effectively?
svar: The kit must be used with a metal platform plate, such as spring steel plates or PEI plates with magnetic stickers. -
spørgsmål:
Do I need to adjust the Z offset after the first calibration?
svar: No, after the initial calibration, there is no need for additional Z offset adjustments.
Sovol 3D Printer Accessories Editorial Review
The Sovol Eddy Current Scanning Module Kit for the SV08 3D printer has received a mixed reception from customers, reflecting a blend of satisfaction with the performance improvements post-installation and frustration with the installation process itself. Reviewers frequently mention that while the installation requires a careful and methodical approach, the resources provided—including written guides, videos, and an online wiki—aid significantly in navigating the more intricate assembly steps. Many users emphasized the importance of double-checking wiring connections before proceeding with firmware updates, as overlooking these details could lead to system malfunctions. Notably, some customers encountered issues with firmware errors or connection problems but found that well-documented troubleshooting guides helped mitigate these challenges. Once installed correctly, the benefits of the upgrade are evident. Users reported improvements in print quality, particularly in terms of Consistent first layers and reliable adjustments to Z offsets, making it a “set and forget” solution for many. Observations of enhanced layer adhesion and extrusion Consistency also feature prominently in the feedback, reinforcing the product’s potential to enhance printing reliability. However, the installation complexity and occasional discrepancies in documented instructions were points of contention that some users highlighted. Several reviewers mentioned that a deeper familiarity with the hardware and software might be beneficial, suggesting that the kit is best suited for those willing to engage in some level of technical tinkering. In summary, the Sovol Eddy Current Scanning Module Kit can dramatically enhance the printing experience for SV08 users willing to invest the necessary time and patience during setup. The strong documentation assists with installation, but users should be prepared for potential software and firmware challenges that may arise. **
Kundeanmeldelser & vurderinger
38 kundebedømmelser
-
5 stjerne
57%
-
4 stjerne
11%
-
3 stjerne
5%
-
2 stjerne
5%
-
1 stjerne
22%
Anmeld dette produkt
Del dine tanker med andre kunder
Fordele
- Noticeable improvements in print quality and Consistency
- Excellent documentation and resources available for installation
- Reliable performance post-installation, referred to as a "set and forget" solution
- Enhanced layer adhesion and extrusion Consistency
Ulemper
- Installation process can be complex and time-Consuming
Produktets prishistorik
Vigtig information
- Begrænsninger : ved produkter som forsendes internationalt skal du venligst være opmærksom på, at eventuelle garantier fra producenten ikke nødvendigvis gælder; producentens tjenester vil måske ikke være tilgængelige; produktmanualer, instruktioner og sikkerhedsoplysninger vil måske ikke findes på destinationslandets sprog. Produkterne samt tilhørende materialer vil måske ikke være designet i overensstemmelse med destinationslandets nationale standarder, specifikationer og krav til mærkning; og produkterne lever ikke nødvendigvis op til destinationslandets standarder for spænding og strøm (hvilket betyder, at en adapter eller omformer kan være nødvendig). Køber er ansvarlig for at sikre, at produktet kan importeres på lovlig vis til destinationslandet. Ved køb hos Ubuy eller Ubuys filialer er køberen officiel importøt og skal følge alle destinationslandets love og regler.
- Det er ikke alle de produkter som vises på Ubuy som er til salg, idet Ubuy er en global søgemaskine. Produkterne er underlagt eksport-/handelsregler.
DKK 431
Bestil nu og få den omkring Tirsdag, Juni 30
This item is not restrict in my country.(Please click on above link if this item is not restrict in your country, So our team will review and allow.)
QTY:
Sikker transaktion
Ubuy arbejder hårdt for at beskytte din sikkerhed og dit privatliv. Vores avancerede betalingssikkerhedssystem sikrer fortrolighed ved at kryptere dine oplysninger under transmission ved hjælp af AES (Advanced Encryption Standards) og SSL (Secure Socket Layer) protokoller. Dine betalingsoplysninger er 100% sikre, da vi ikke deler dine betalingsoplysninger med tredjepartssælgere.
Vores bedste logistikpartnere
Hurtigste grænseoverskridende levering
Egenskaber og fordele
- Compatible exclusively with Sovol SV08 and Klipper firmware.
- Utilizes eddy current scanning for rapid, precise automatic bed leveling.
- Eliminates manual Z offset adjustments after initial calibration.
- Features advanced temperature compensation to maintain leveling accuracy.
- Requires a metal platform plate for optimal functionality.
- Easy installation when following firmware compilation guidelines.
